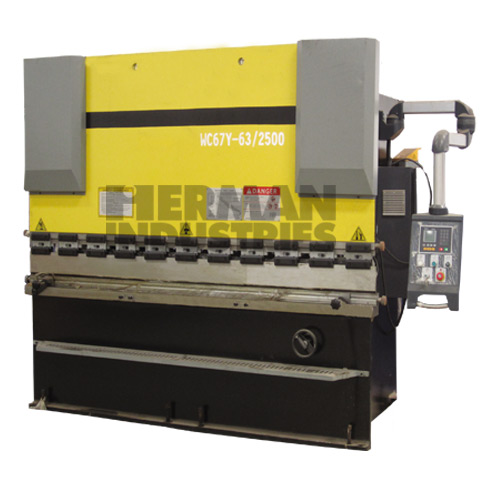

Herman Industries Houmann WC67Y 63T/2500 Press Brake
Model: WC67Y63T
Features:
Conventional Hydraulic Press Brake Model WC67Y 63T/2500:
- Adopt integrated hydraulic control system, more reliable and easy for maintenance.
- Hydraulic top-drive, stepless pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability.
- High accuracy and high strength and can be transported easily
- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate
- Steel fabricated structure which is duly stress relieved by way of Annealing to ensure the operational accuracies of the machine for longer periods of time.
- Upper stroke design for bending,low noise,stable operating situation
- Mechanical synchronous mechanism and the complex compensation are designed so as to ensure the accuracies of the bent parts (the convex structure for the table above 160T) productivity since set-up times are drastically reduced.
- Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays
- Safety fence and the electric interlocker have been designed for the machine to ensure the operation safety.
Houmann WC67Y 63T/2500 Technical Parameters:
SPECIFICATION |
UNIT |
Nominal Force of The Ram |
630 |
Working Table Distance |
2500 |
Upright Column Distance |
2000 |
Throat Depth |
250 |
Max Stroke of The Ram |
100 |
Max Open Height Between the Table and Ram (kN) |
370 |
Gear Pump (L/min) |
25 |
Main Motor: |
|
Type |
Y132S-4 |
Power (kW) |
5.5 |
Speed (r/min) |
1440 |
Speed for The Ram Stroke: |
|
Empty Stroke |
60 |
Working Stroke |
6 |
Return Stroke |
40 |
Dimension: |
|
Length (mm) |
2600 |
Width (mm |
1360 |
Height (mm) |
2050 |
