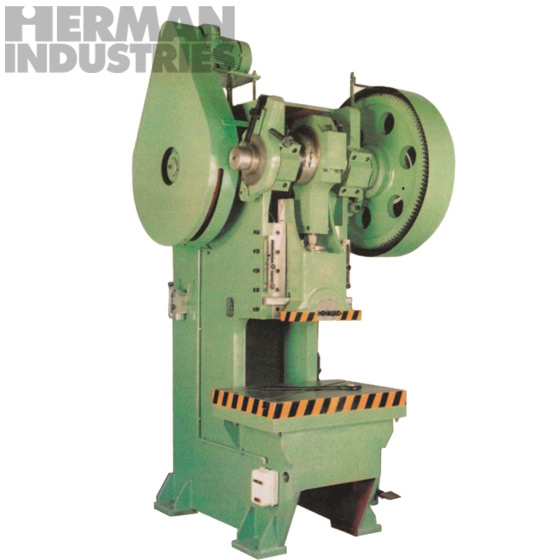

Model: J236T-JT63T
Houman Pon Mechanic Descriptions:
| TYPE | J23-6.3T | J23-10T | J23-16T | J23-25T | J23-40T | J223-63T |
| Norminal Force (Kn) | 63 | 100 | 160 | 250 | 400 | 630 |
| Slider Travel (mm) | 40 | 50 | 60 | 70 | 100 | 100 |
| Number of Stroke | 140 | 150 | 110 | 70 | 55 | 60 |
| Max. Closure Height (mm) | 120 | 200 | 220 | 260 | 320 | 330 |
| Closure Height Adjusment Range (mm) | 30 | 30 | 50 | 60 | 80 | 80 |
|
Distance from Slide Block Center Point to Press Body (mm) |
110 | 120 | 180 | 190 | 230 | 240 |
| Work Table Distance (LxWxH) (mm) | 210x350 | 230x370 | 320x450 | 320x530 | 400x650 | 450x710 |
| Thickness of Bolster (mm) | 40 | 45 | 45 | 50 | 80 | 80 |
| Shank Hole Size (Die x Depth) (mm) | 30x40 | 30x50 | 40x60 | 46x60 | 50x70 | 50x70 |
| Power (kW) | 0.75 | 1.5 | 1.5 | 2.2 | 4 | 5.5 |
| Dimension (mm) | 750x550x1450 | 800x600x1550 | 1100x780x1800 | 1200x900x2050 | 1500x1100x2400 | 1600x1150x2480 |
| Weigth (kg) | 500 | 700 | 1000 | 1800 | 3200 | 3800 |
