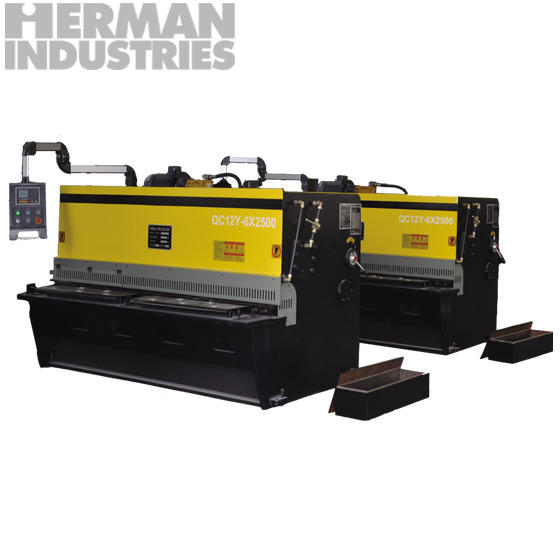

Herman Industries Houmann QC12Y12X3200 Shearing Machine
Model: QC12Y12X3200
Features:
- Outer Construction
- Using UG analysis(finite element analysis).
- The whole machine is in sheet plate welded structure.
- High feedback precision for position of gliding block, accurate and stable operation.
- Characteristics
- Assistant Tooling Set on work table, make tooling adjustment easier
- Indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.
- The Four-side edge shearing blade prolongs the service life of blade.
- Alignment device with lighting and control device for shearing stroke are set, with a handy and prompt adjustment.
- The rear stopper is fitted with electric adjustment and manual adjustment, equipped with digital display.
- Hydraulic System
- Advanced hydraulic integrated valve block, and the pipeline connection is minimized in a compact structure, excellent rigidity and stability.
- Electric Control System
- The electrical component and material meet the international standard, safe and long-lived.
- The machine is with AC380V,50HZ and the control loop is with AC220V. 24V for Backguage controlling, 6V for indication Light, 24V for other component.
- Electric box on left side. The operated buttons are on the machine's button table. The electrical switch, indicator lights are in the electrical case.
- Front/Back Gauge
- Frontgauge: Setting on table, with indicator, adjust stopper.
- Backguage: Setting on tooling set, swing with up-tooling set, driven by 0.55KW electric Motor. The rear stopper; electric adjustment and manual adjustment and digital display.
Houmann QC12Y12X3200 Specifications:
| SPECIFICATION | UNIT |
|---|
| Max Shearing Thickness (mm) |
12 |
| Max Shearing Width (mm) |
3200 |
| Strength of Shearing Sheets (N/mm2) |
450 |
| Shearing Angles |
1' 30' |
| Max Length of Back Gauge (mm) |
600 |
| Stroke Number (Min) |
10 |
| Blade Length (mm) |
3300 |
| Blade Material (Crsi) |
9 |
| Depth of The Throat (mm) |
100 |
| Main Motor: |
|
| Power (kW) |
11 |
| Model |
Y160M-4 |
| Revolving Speed (r/min) |
1460 |
| Dimension: |
|
| Length (mm) |
3848 |
| Width (mm) |
1850 |
| Height (mm) |
1760 |
