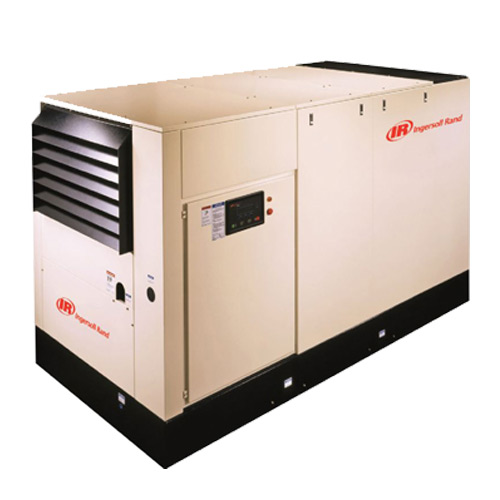

Ingersoll Rand 92-160kW Medium Rotary Screw Air Compressor

P/N ML110-SE
Ingersoll Rand 92-160kW Medium Rotary Screw Air Compressor
Fitur/Keterangan:

IE1 Motor and ASME (MOM) Oil Separator.

Specifications Chart:



MODEL  CCN Capacity Operating bar(g) Pressure psi(g) Cooler
m3/min ft3/min
ML90 24091134 17.1 603.8 7.5 109 A/C
ML90 24091191 17.1 603.8 7.5 109 W/C
MM90 24091142 15.3 540.2 8.5 123 A/C
MM90 24091209 15.3 540.2 8.5 123 W/C
MH90 24091159 14 494.3 10 145 A/C
MH90 24091217 14 494.3 10 145 W/C
ML110 24091167 20 706.2 7.5 109 A/C
ML110 24091225 20 706.2 7.5 109 W/C
MM110 24091175 19.2 678 8.5 123 A/C
MM110 24091233 19.2 678 8.5 123 W/C
MH110 24091183 17.5 617.9 10 145 A/C
MH110 24091241 17.5 617.9 10 145 W/C
ML132 24091258 23.5 829.8 7.5 109 A/C
ML132 24091316 23.5 829.8 7.5 109 W/C
MM132 24091266 22.3 787.4 8.5 123 A/C
MM132 24091324 22.3 787.4 8.5 123 W/C
MH132 24091274 21 741.5 10 145 A/C
MH132 24091332 21 741.5 10 145 W/C
ML160 24091282 28 988.7 7.5 109 A/C
ML160 24091340 28 988.7 7.5 109 W/C
MM160 24091290 26 918.1 8.5 123 A/C
MM160 24091357 26 918.1 8.5 123 W/C
MH160 24091308 25 882.8 10 145 A/C
MH160 24091365 25 882.8 10 145 W/C

Dimensions (mm) and weight (kg):

  • Dimension: 3200 L x 1587 W x 1905 H
  • Weight (kg): 2617(M90), 2640(M110) 2702(M132), 2731(M160)
Spesifikasi:

Main features:

  • Rugged Ingersoll Rand airend with duplex tapered roller bearings
  • No maintenance integral gear drive system
  • Air or Water-Cooled aftercooler with moisture separator
  • Integral star delta starter
  • Factory-fill of SSR UltraCoolant
  • IntellisysTM capacity control system featuring:
  • Finger-touch control panel
  • On-Line/Off-line control with automatic start & stop
  • 60% ~ 100% Modulation Control as Standard
  • 80A/C, 80W/C dB(A) low sound enclosure



SOLD OUT
