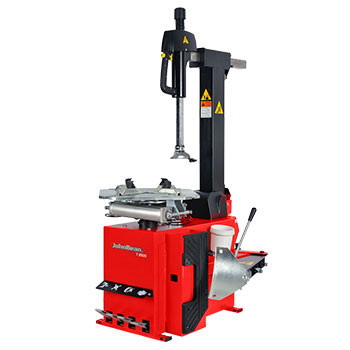

John Bean T2500 Tilt-Back Tire Changer
Model: T2500
Features:
John Bean T2500 Tilt-Back Tire Changer
Key Features
• Double-acting bead breaker cylinder
• Pneumatic tilt-back post and locked in working position
• One-part mounting head vertically and laterally adjustable in spaced-apart position relative to the rim
• Square turntable 14 mm thick to withstand major bending forces when handling large and low-profile tires
• Plastic protection on mounting head to avoid damage to alloy rims
Standard Accessories
• Tire lever 500mm
• Plastic protection for jaws
• Roller for steel rims
• Plastic rim protector for mounting tool
• Air plug connector
• Tire inflator
• Brush
• For car and light-truck wheels
Technical Data and Dimensions |
|
|
|
|
|
Inner Clamping Range |
inch |
01-12 |
Outer Clamping Range |
inch |
01-10 |
Max. Rim Width |
inch |
12 |
Max. Wheel Diameter |
mm |
1000 |
Bead Breaking Range |
mm |
70-330 |
Turntable Speed |
rpm |
6.5 |
Dimensions (W x D x H) |
mm |
1040 x 965 x 1490 |
Weight |
kg |
200 |
Compressed Air Supply |
bar |
08-Dec |
Power Supply |
230 V |
1ph 50/60 Hz |
200-415 V |
3ph 50/60 Hz |
