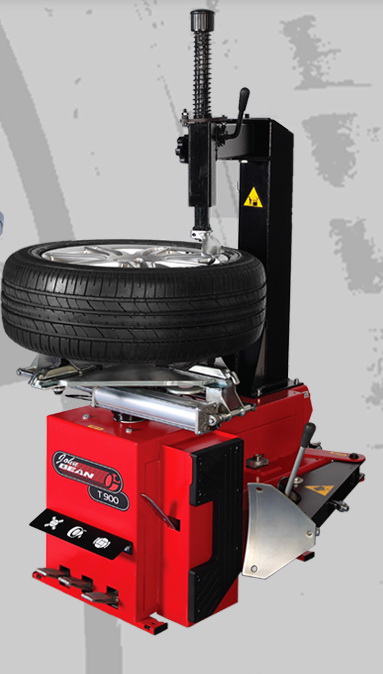

John Bean T900 Swing Arm Tire Changer
Model: T900
Features:
John Bean T900 Swing Arm Tire Changer
For car and light-truck wheels
Key Features
• Double-acting bead breaker cylinder
• Swing arm for minimum space requirement
• Mounting head vertically and laterally adjustable in spaced-apart position relative to the rim
• Square turntable 14 mm thick to withstand major bending forces when handling large and low-profile tires
• Plastic protection on mounting head to avoid damage to alloy rims
Standard Accessories
• Tire lever 500mm
• Plastic protection for jaws
• Roller for steel rims
• Plastic rim protector for mounting tool
• Air plug connector
• Tire inflator
• Brush
| Technical Data and Dimensions |
|
|
| Inner Clamping Range |
inch |
01-12 |
| Outer Camping Range |
inch |
01-10 |
| Max. Rim Width |
inch |
12 |
| Max. Wheel Diameter |
mm |
1000 |
| Bead Breaking Range |
mm |
70-330 |
| Turntable Speed |
rpm |
6.5 |
| Dimensions (W x D x H) |
mm |
1040 x 875 x 1470 |
| Weight |
kg |
173 |
| Compressed Air Supply |
bar |
08-Dec |
| Power Supply |
230 V |
1ph 50/60 Hz |
| 200-415 V |
3ph 50/60 Hz |
