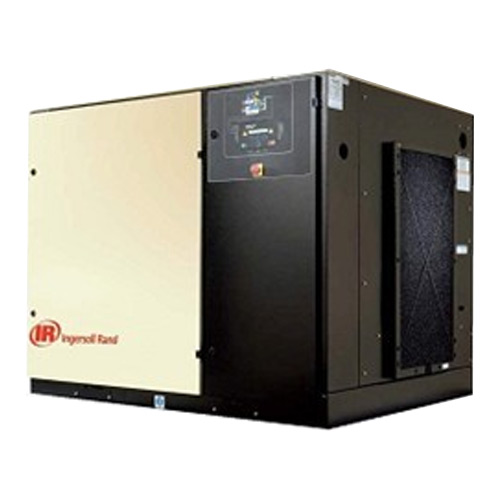

MH 37 Medium Rotary Screw Air Compressor
Model: MH37
Features:
High dust inlet air filter extends the life of the machine by helping to keep dirt out of the compressor • Integral gear drive is permanently aligned and requires no adjustments during the course of normal operation
INCLUSIVE PACKAGING
- 400Volt/3phase/50Hz IP55 motors
- 400Volt/3phase/50Hz integrated
- star-delta starter
- Air-cooled aftercooler discharges air at an 8°C CTD
- Air-cooled oil cooler
- Condensate separator and drain trap
- 72 dB(A) quiet enclosure
Robust 46°C ambient temperature rating keeps the compressor running in hot equipment rooms and minimises nuisance shut-downs caused by fouled coolers
| Model | Frequency (Hz) | Rated Pressure (barg / psig) | Nominal Power (kW / hp) | Flow (m3min / cfm) | Length (cm / in) | Width (cm / in) | Height (cm / in) | Weight (kg / lbs) |
|---|
| MH 37 |
50 |
10 / 145 |
37 / 50 |
5.6 / 198 |
170 / 67 |
160 / 63 |
170 / 67 |
907 / 2000 |
|
